摘 要
本研究课题的选取深受现实世界的应用需求和技术进步的激励。在物联网与智能家居行业的快速兴起背景下，手势识别作为一种直接且用户友好的交互手段，其市场的需求日益上升。同时，STM32系列单片机的高性能与MPU6050传感器的精准监测能力，为打造高效的手势识别系统提供了技术基础。手势识别技术作为人机交互研究的热点，也吸引了众多研究者的目光。因此，本项目致力于设计并实现一套基于STM32单片机的手势识别系统，旨在探索和实现手势识别的算法、硬件设计及其在不同场景下的应用，以期满足市场的应用需求，并促进相关技术的进一步发展。此外，这项研究也体现了研究者对嵌入式系统、传感技术以及人机交互等研究领域的深入兴趣，目的在于通过具体的工程实践来加强对这些技术领域的掌握和应用。
本文详细规划并成功开发了一种基于STM32单片机的手势识别系统，该系统在创新性与实用性方面均有显著表现。系统由主控单元和从属单元两部分组成，主控单元负责数据的接收与界面展示，而从属单元则专门负责手势的检测与数据的上传。主控单元内置蓝牙通信模块和LCD1602液晶显示屏，能够通过蓝牙技术接收从属单元传输的手势信息，并将这些信息实时展示在显示屏上。从属单元则装备了蓝牙通信模块和MPU6050传感器，该传感器能够精确捕捉并识别多个方向的手势动作，然后将这些信息通过蓝牙传输至主控单元。通过主从单元的配合，该系统能够精确且高效地完成手势的识别与信息的展示。本研究不仅证实了STM32单片机在手势识别方面的应用前景，也为未来智能交互系统的设计提供了有价值的参考。
关键词：STM32单片机；手势检测；MPU6050传感器；LCD1602显示屏；智能化交互系统
Abstract
The selection of this research topic is deeply motivated by the real-world application needs and technological progress. In the background of the rapid rise of the Internet of Things and smart home industry, gesture recognition, as a direct and user-friendly interaction means, its market demand is increasing. At the same time, the high performance of STM 32 series MCCM and the accurate monitoring capability of MPU6050 sensor provide a technical basis for creating an efficient gesture recognition system. As a hot topic of human-computer interaction research, gesture recognition technology has also attracted the attention of many researchers. Therefore, this project is committed to the design and implementation of a gesture recognition system based on STM 32, aiming to explore and realize the algorithm of gesture recognition, hardware design and its application in different scenarios, in order to meet the application needs of the market and promote the further development of related technologies. In addition, the study also reflects the researchers' deep interest in embedded systems, sensing technology, and human-computer interaction, aiming to enhance the mastery and application of these technologies through specific engineering practices.
This paper plans and successfully develops a gesture recognition system based on STM 32, which is remarkable in terms of innovation and practicality. The system consists of the main control unit and the subordinate unit, which is responsible for data reception and interface display, while the subordinate unit is specially responsible for gesture detection and data upload. The main control unit has a built-in Bluetooth communication module and a LCD1602 LCD screen, which can receive the gesture information transmitted by the subordinate unit through Bluetooth technology, and display these information on the display screen in real time. The subordinate unit is equipped with a Bluetooth communication module and a MPU6050 sensor that can accurately capture and recognize gestures in multiple directions, and then transmit the information to the main control unit via Bluetooth. Through the cooperation of the master and slave units, the system can accurately and efficiently complete the recognition of gestures and information display. This study not only confirms the application prospect of STM 32 in gesture recognition, but also provides a valuable reference for the future design of intelligent interaction systems.
Key words: STM 32 CM; gesture detection; MPU6050 sensor; LCD1602 display; intelligent interactive system
目 录
摘 要
Abstract
1 绪论
1.1 研究背景及其意义
1.2 国内外研究现状

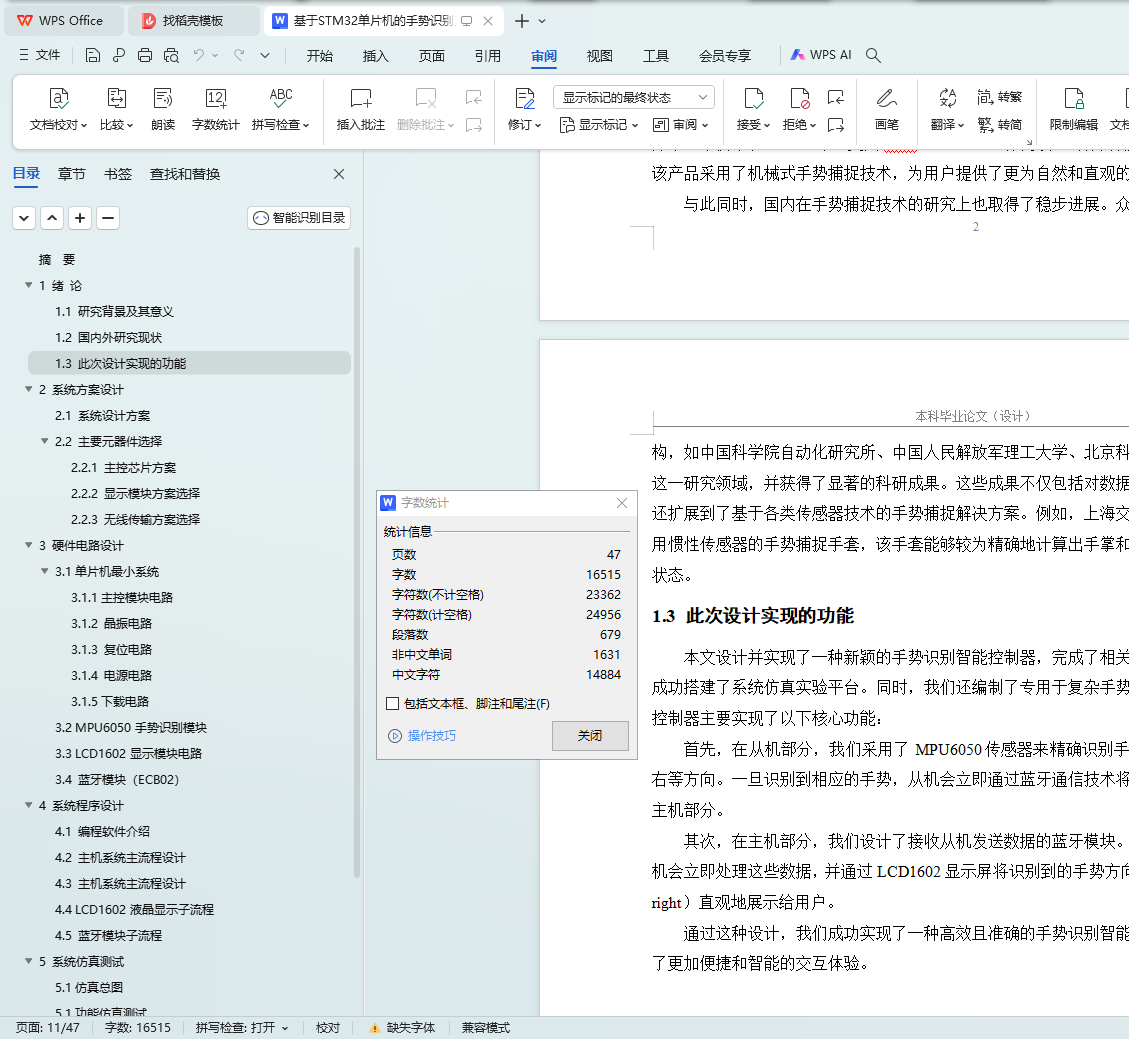

1.3 此次设计实现的功能

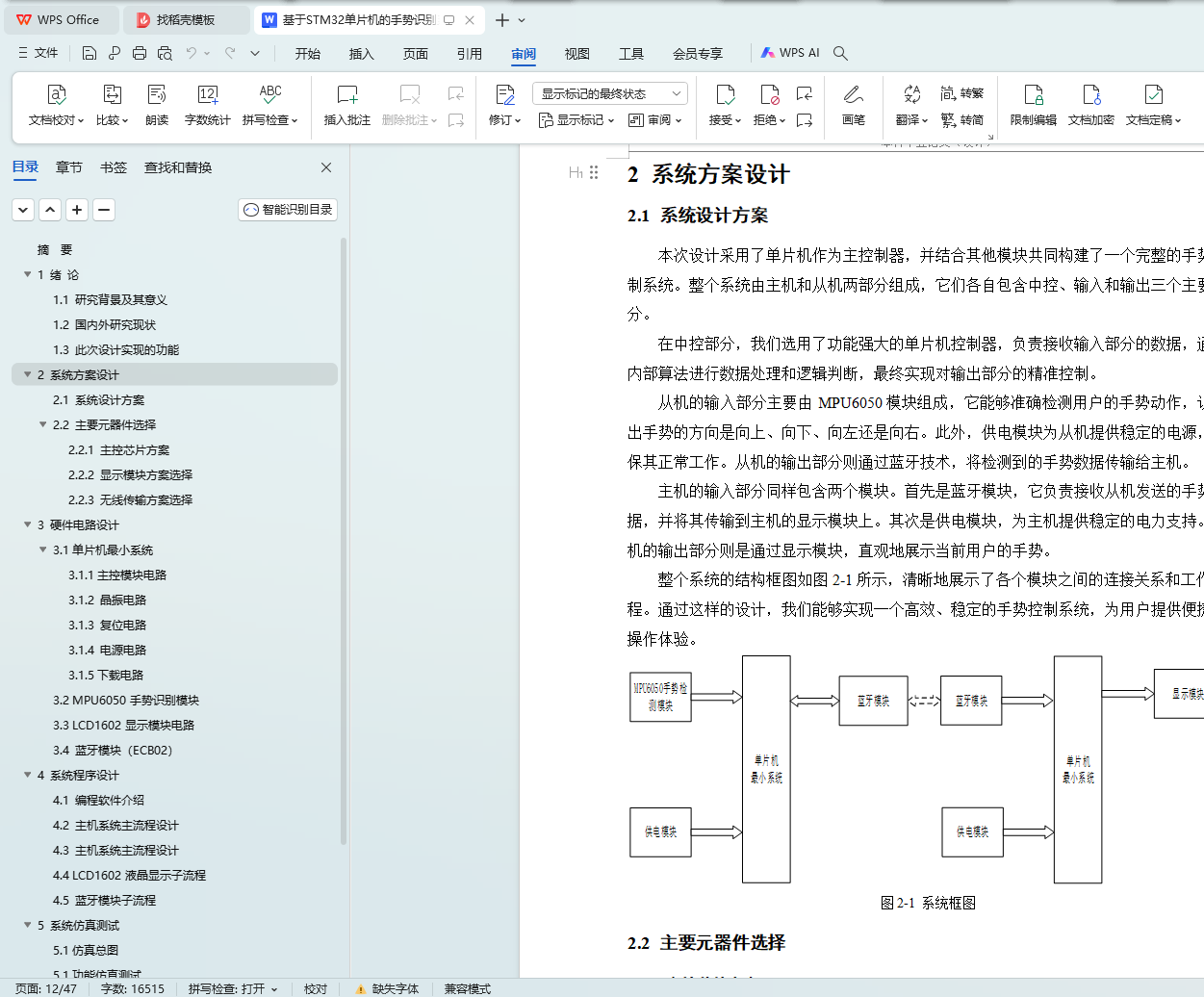

2 系统方案设计
2.1 系统设计方案
2.2 主要元器件选择
2.2.1 主控芯片方案
2.2.2 显示模块方案选择
2.2.3 无线传输方案选择
3 硬件电路设计

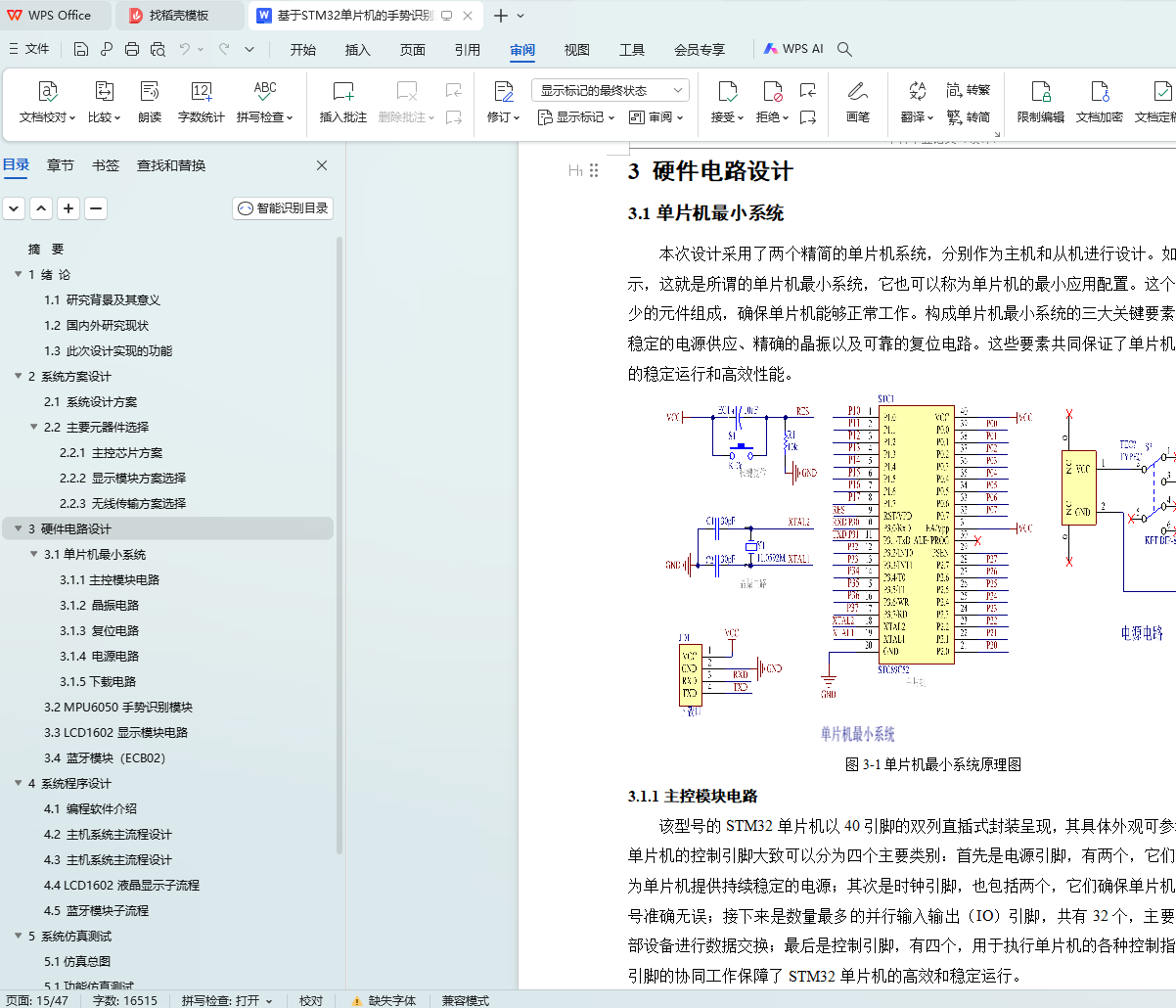

3.1单片机最小系统
3.1.1主控模块电路
3.1.2 晶振电路
3.1.3 复位电路
3.1.4 电源电路
3.1.5下载电路

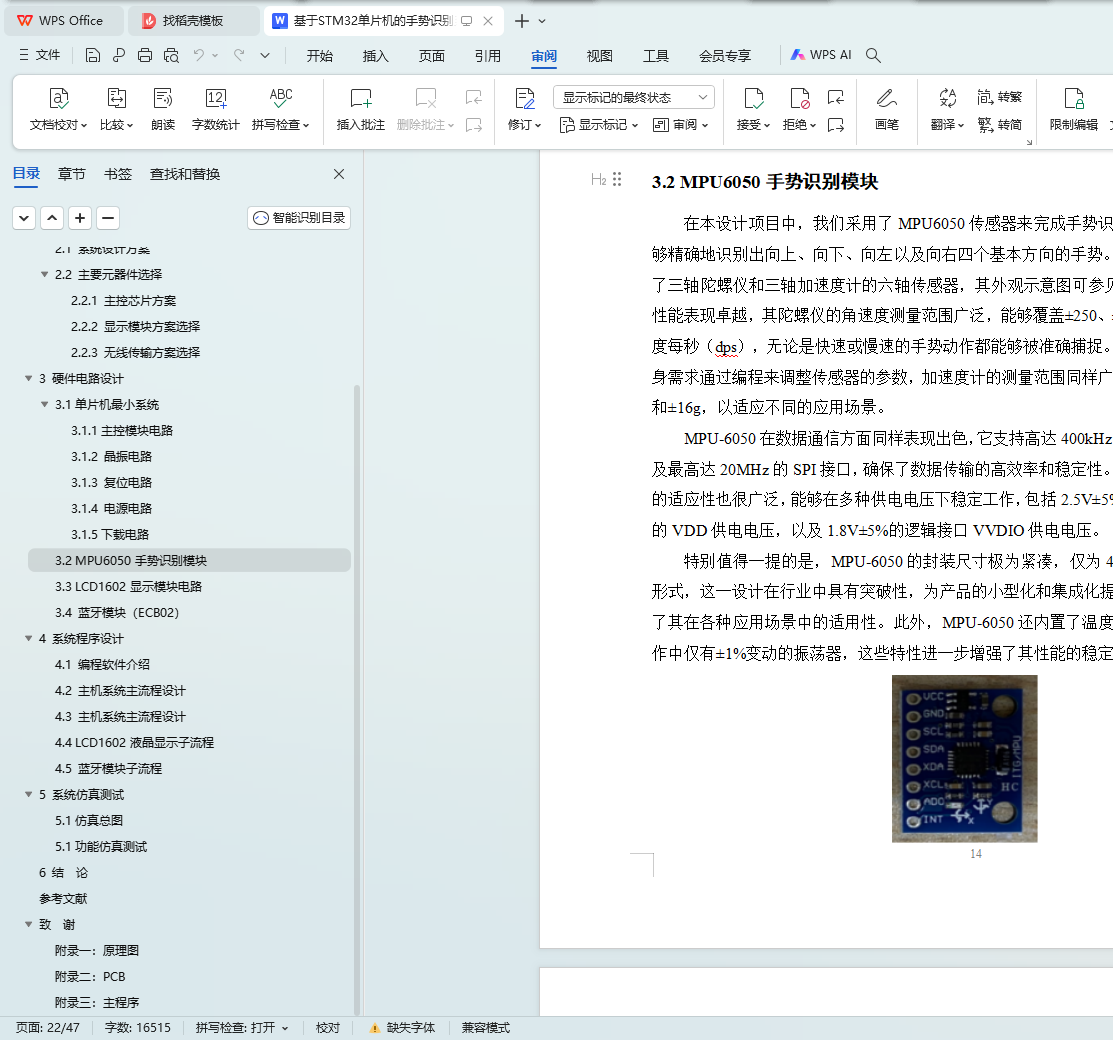

3.2 MPU6050手势识别模块
3.3 LCD1602显示模块电路
3.4 蓝牙模块（ECB02）
4 系统程序设计

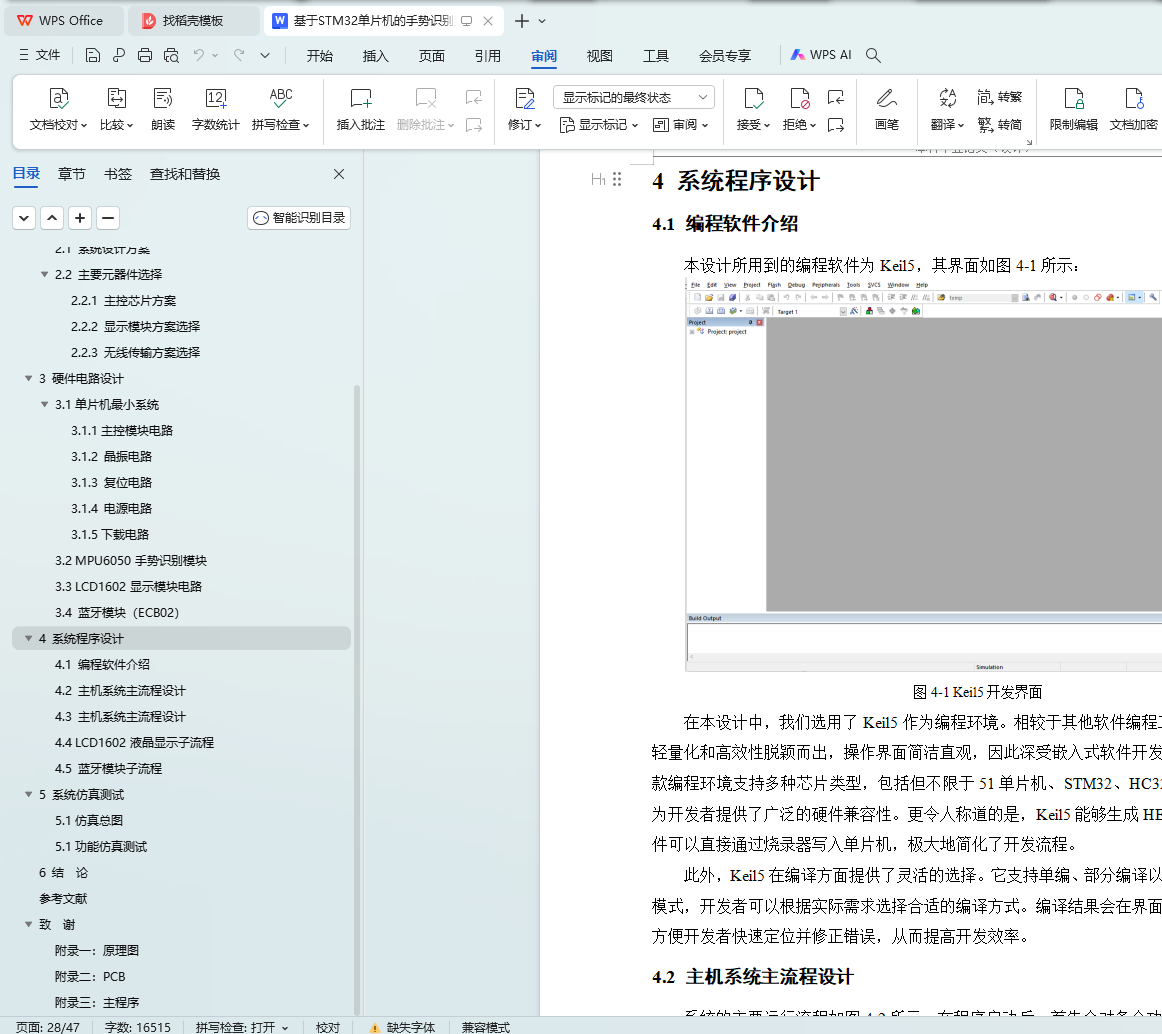

4.1 编程软件介绍
4.2 主机系统主流程设计
4.3 主机系统主流程设计
4.4 LCD1602液晶显示子流程
4.5 蓝牙模块子流程
5 系统仿真测试

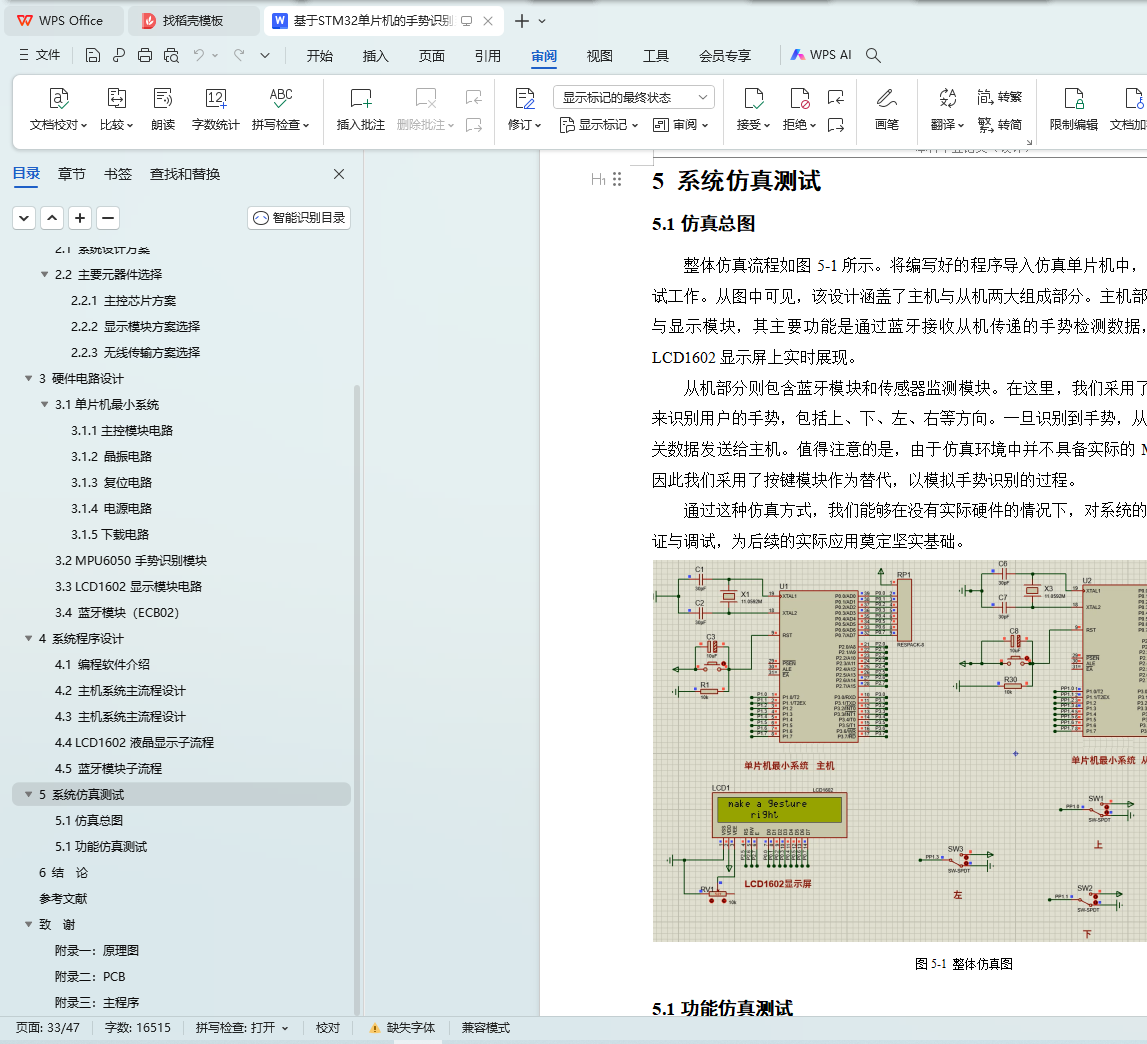

5.1仿真总图
图5-1 整体仿真图
5.1功能仿真测试
图5-2 向下姿势仿真图

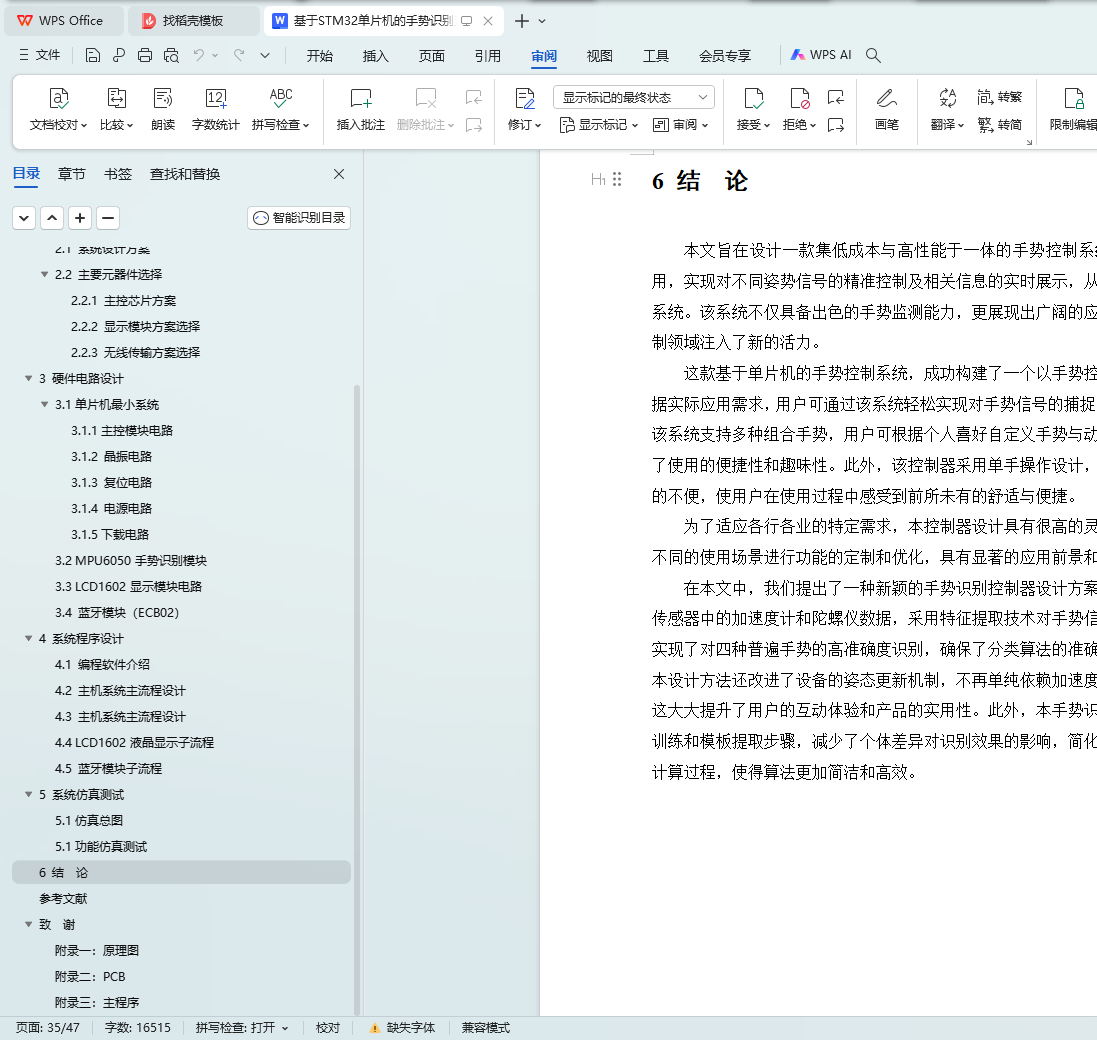

6总 结
致 谢
参考文献
附 录

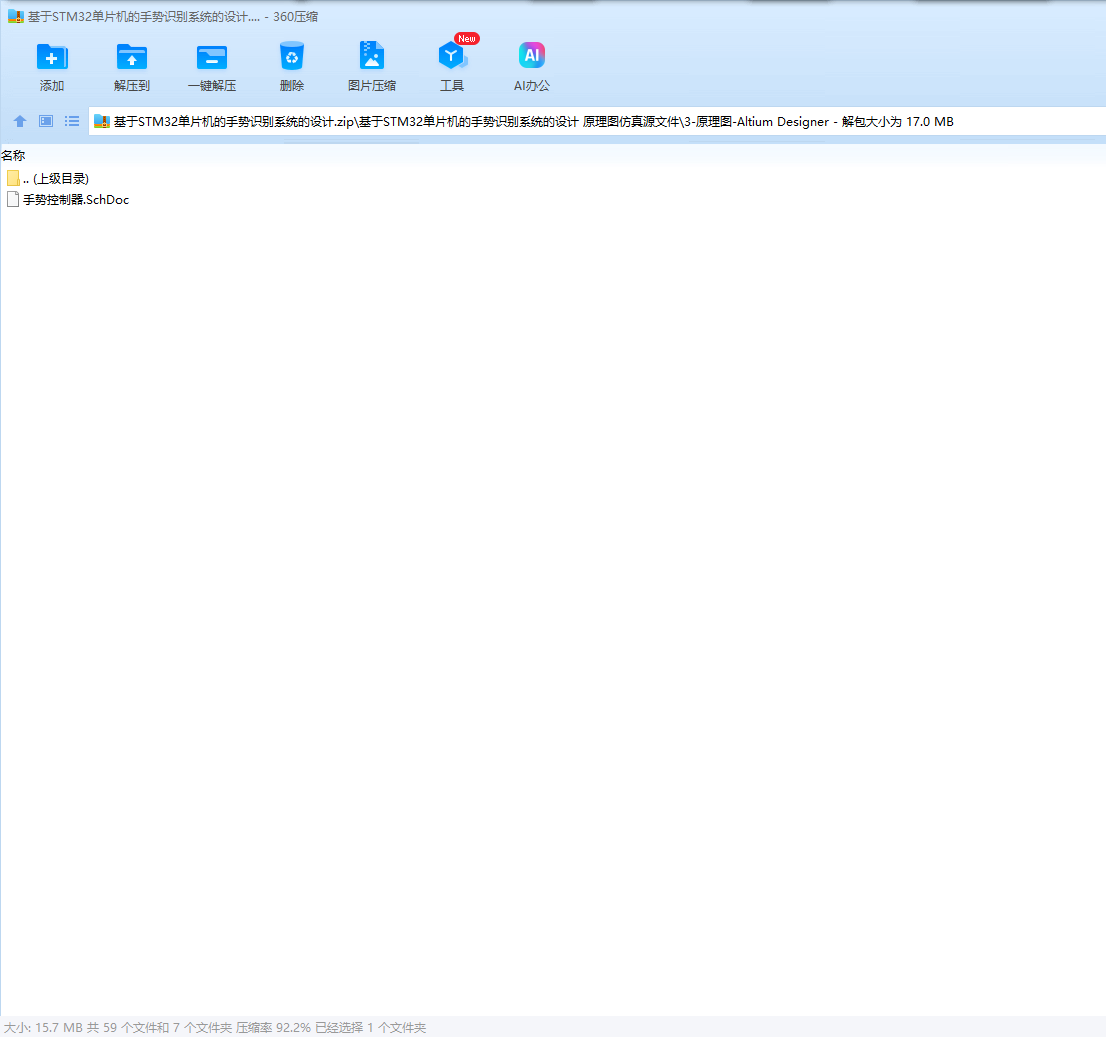

附录一：原理图
附录二：PCB

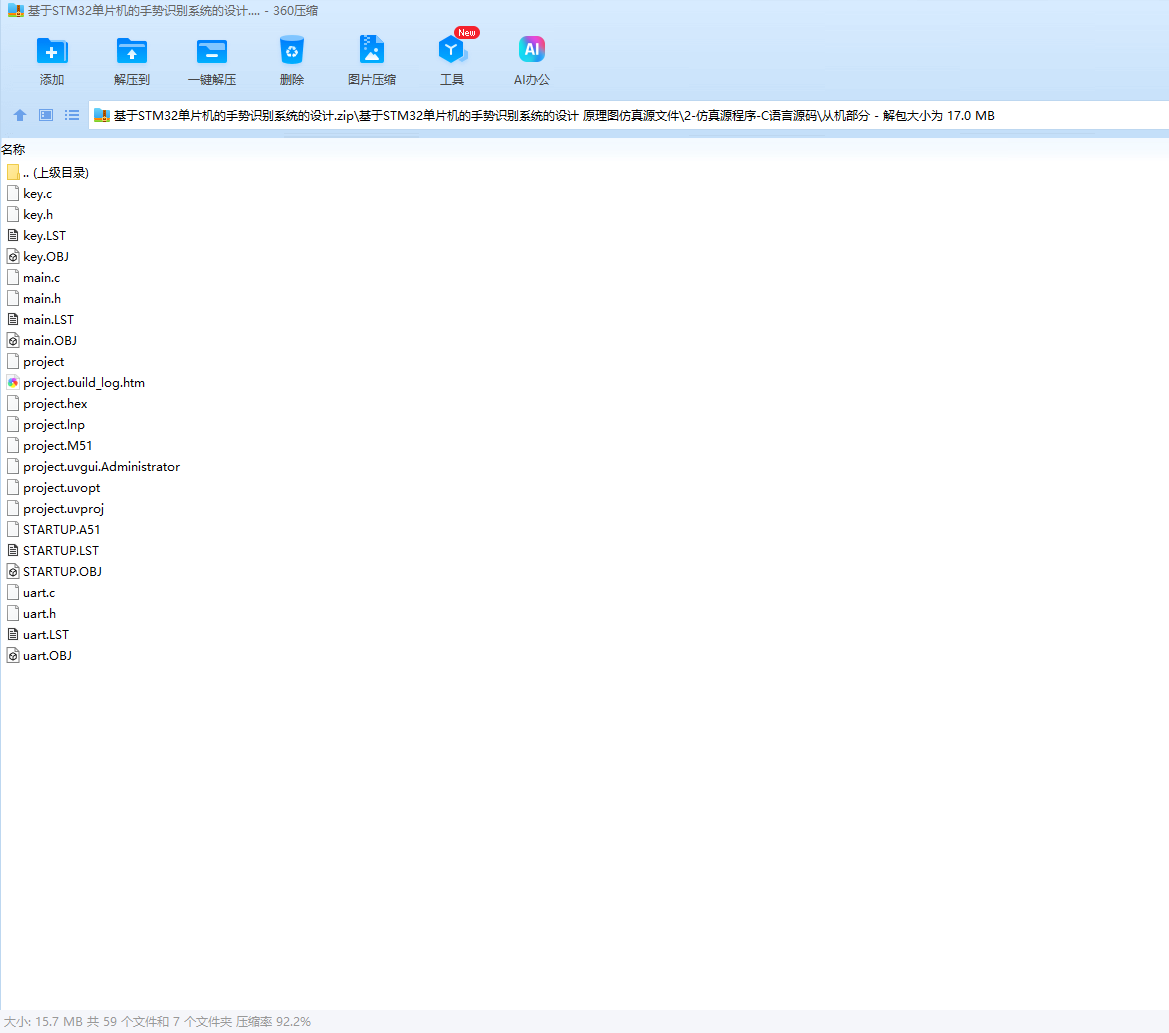

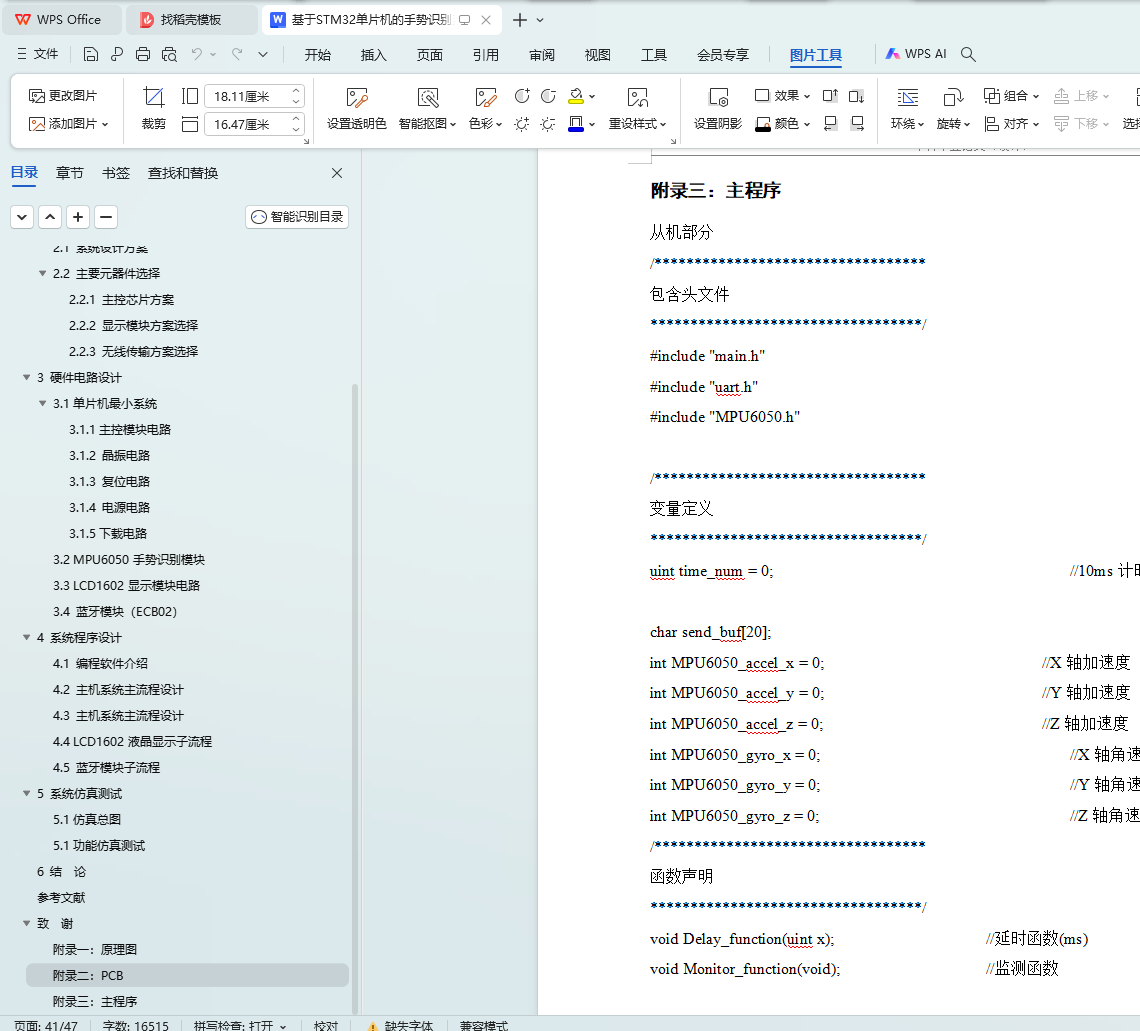

附录三：主程序
