摘要
离心式压缩机是工业领域中不可或缺的关键设备，其性能的优劣直接影响到工业生产的经济性和效率。本文针对离心式压缩机的结构设计进行了深入研究，并采用数值模拟方法对其性能进行了预测和优化。首先，本文对离心式压缩机的结构和工作原理进行了详细阐述，分析了其关键部件的设计要点。接着，利用流场分析和热力学分析等方法，建立了离心式压缩机的数学模型，并对其性能进行了预测。在此基础上，本文对离心式压缩机的结构进行了优化设计，提高了其效率和可靠性。此外，还研究了离心式压缩机的控制策略和动态特性，为其在实际应用中的稳定运行和优化控制提供了理论支持。本文的研究成果不仅为离心式压缩机的设计提供了新的思路和方法，同时也为工业领域的节能减排和高效生产提供了有力支持。
关键词：离心式压缩机；结构设计；性能预测；优化设计；控制策略；动态特性
Abstract
Centrifugal compressor is an indispensable key equipment in the industrial field, and its performance directly affects the economy and efficiency of industrial production. In this paper, we study the structure design of centrifugal compressor and predict and optimize its performance. Firstly, this paper expounds the structure and working principle of the centrifugal compressor and analyzes the design points of its key components. Then, using the methods of flow field analysis and thermodynamic analysis, the mathematical model of the centrifugal compressor is established, and its performance is predicted. Based on this, the structure of the centrifugal compressor has improve its efficiency and reliability. Moreover, the control strategy and dynamic characteristics of the centrifugal compressor are studied, which provide theoretical support for its stable operation and optimized control in practical applications. The research results of this paper not only provide new ideas and methods for the design of centrifugal compressor, but also provide strong support for energy saving and emission reduction and efficient production in the industrial field.
Key words: centrifugal compressor; structure design; performance prediction; optimization design; control strategy; dynamic characteristics
目录
摘要
Abstract
前 言

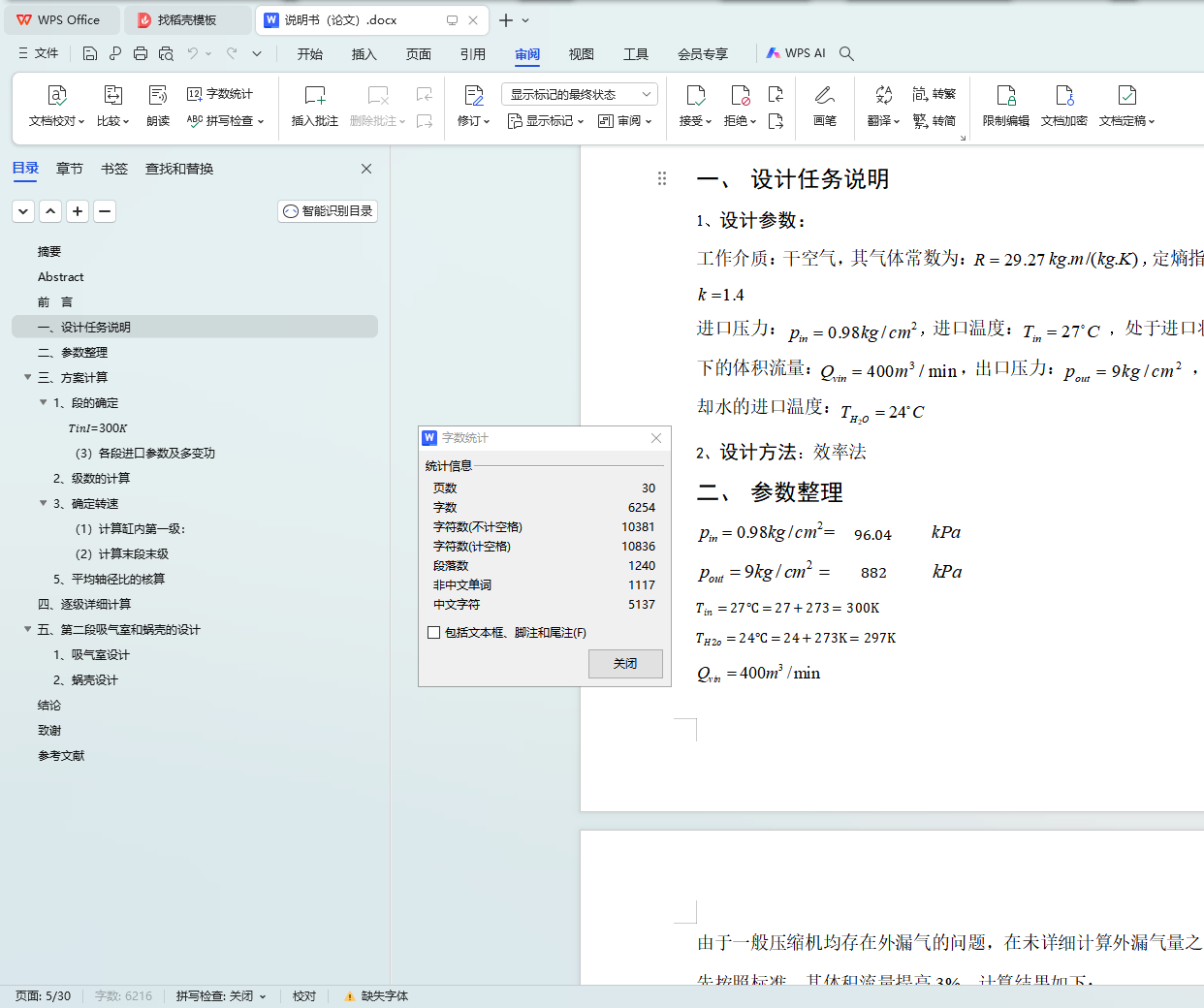

一、 设计任务说明
二、 参数整理

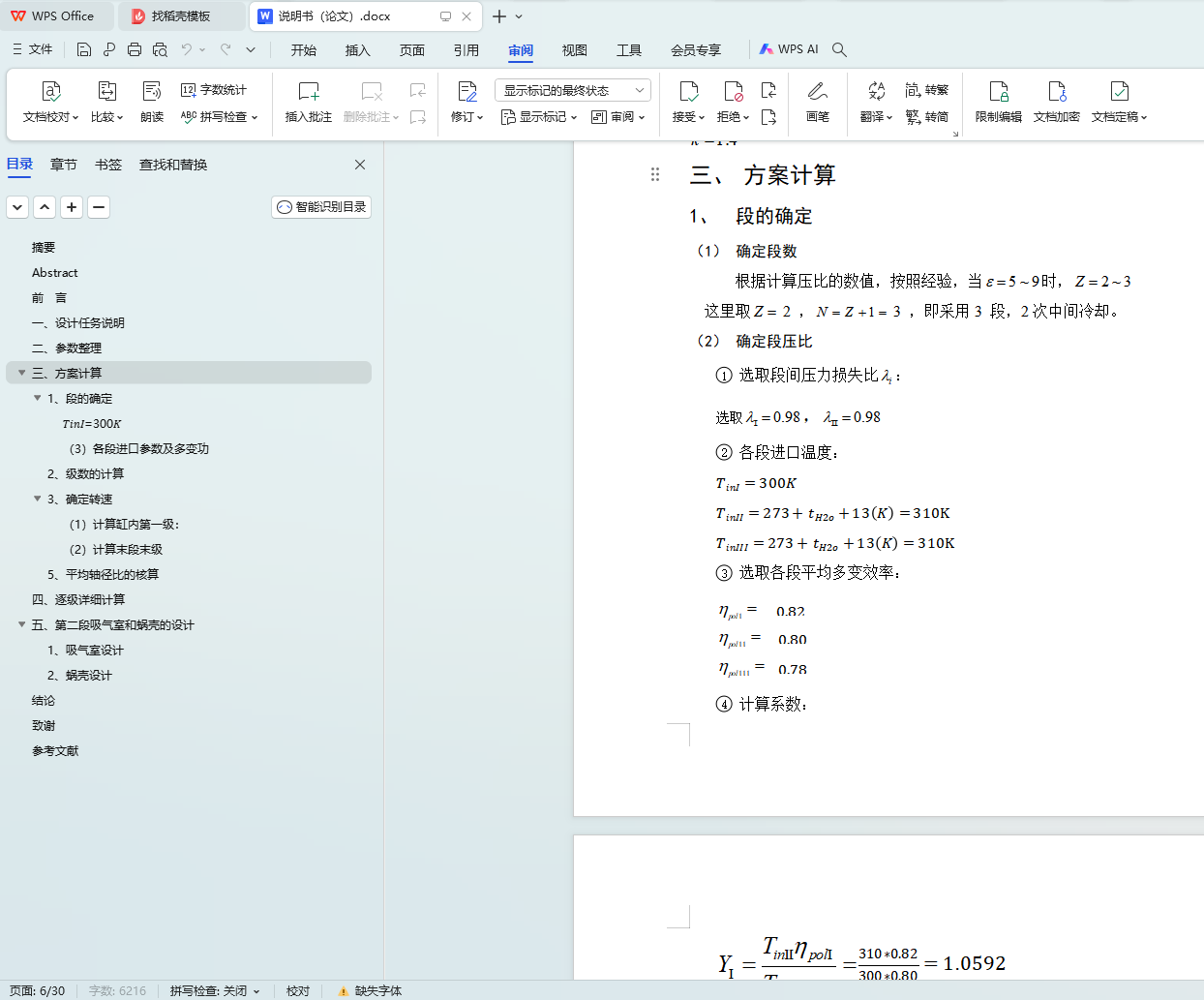

三、 方案计算
1、 段的确定
（3） 各段进口参数及多变功
2、 级数的计算
3、 确定转速
（1）计算缸内第一级：
（2）计算末段末级
5、 平均轴径比的核算
四、 逐级详细计算

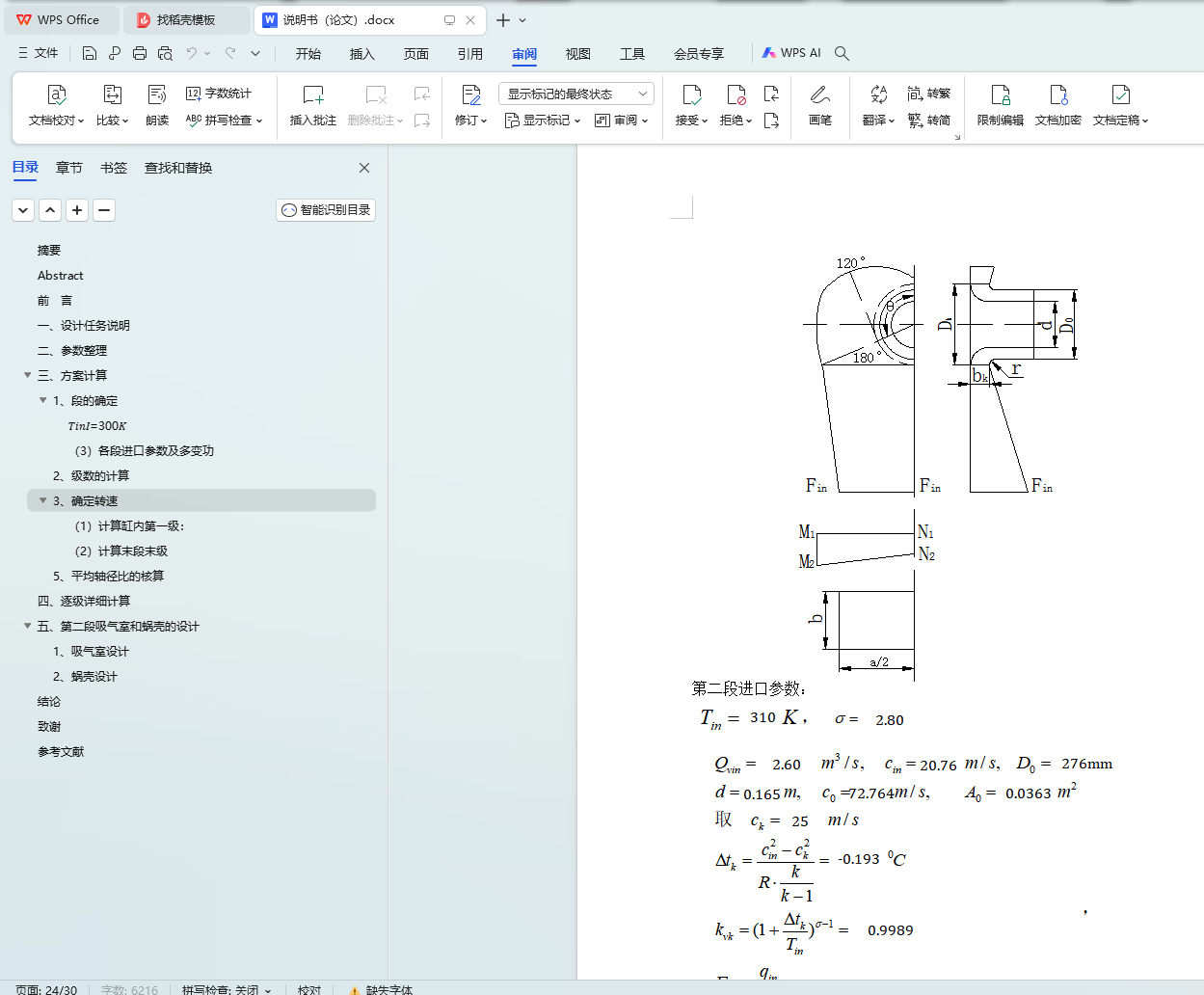

五、第二段吸气室和蜗壳的设计
1、 吸气室设计

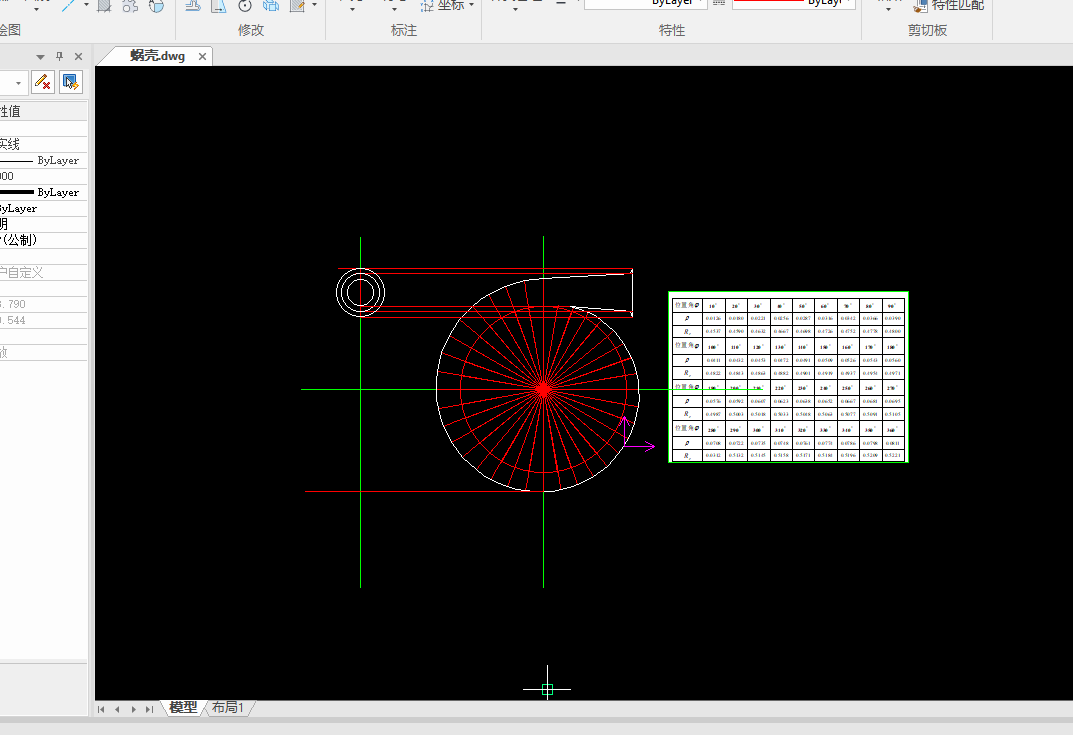

2、 蜗壳设计
结论
致谢
参考文献
