摘 要
历年来的丰产经验证明：抓紧夏季垦复荒山，加强熟山中耕培育，是保证全面油茶大丰收的主要关键。油茶地经垦复后土壤疏松,保水保肥,促进茶株根系发育,春季所发新梢数、梢长、新叶数、花芽数分别比不垦复的增加48.5%、118.7%、11.5%和88・7%,而且茶籽千粒重增加0.7一3.3公斤,亩产量增加11.7一39.2公斤,增产15.7%一81.6%。所谓的垦复是指翻耕荒芜的茶山而言，其目的在于：消除杂草灌木，促进土壤风化，故宜用深挖。垦复的深度视情况而定，一般７～８寸。本课题运用制图软件对油茶垦复机中间传动进行机构设计，其中包括中间传动，侧边的传动，旋转锹的设计。通过蜗轮蜗杆的变向将动力传到侧边，使用大小齿轮实现减速后传给刀，既解决了侧边传动耕幅较小的问题，也实现了低速、高效率的垦复要求。
关键字：油茶，垦复机，中间传动，设计
Abstract
Over the years the high yield experience proves: hold summer cultivation of barren mountain, strengthen cultivation cultivation is to ensure that the cooked hill, comprehensive bumper harvest of Camellia tea. Camellia tea by reclamation after loose soil, fertilizer and water conservation, the promotion of tea plant root development, spring hair shoot number, shoot length, leaf number, new flower bud number were less than48.5%,118.7% increase in the county,88,11.5% and7%, and the tea seed weight increased by 0.73.3kg, yield increase11.739.2 kilograms, increase production 15.7%81.6%. The so-called reclamation is plowed barren mountain, its purpose is: to eliminate weeds shrubs, to promote soil weathering, therefore suitable for deep. Reclamation of depth depending on the situation, general 7 ~8 inch. The subject of the use of mapping software on Camellia tea cultivating machine intermediate transmission mechanism design, including the intermediate drive, side drive, rotary shovel design. Through the worm gear turning to power side, using the size gear speed reducing unit to the cutter, which solves the side driving the tilling amplitude is smaller, but also to achieve a low, efficient reclamation requirements.
Keywords: tea, cultivating machine, an intermediate transmission, design
目录
１ 绪 论 1
1.1 引言 1
1.2 油茶垦复的简介 1
２油茶垦复机的工作原理 2
2.1 油茶垦复机的工作方式 2
2.2 油茶垦复机传动的选择 2
2.3 油茶垦复机的耕作机具的选择 2
2.4 油茶垦复机的工作原理的总图 3
2.4.1油茶垦复机工作原理简述 3

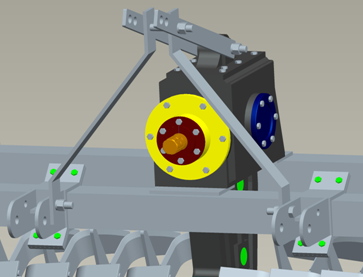

2.4.2油茶垦复机的三维装配图 4
2.4.3 油茶垦复机的传动机构的二维图 5
2.5 油茶垦复机的耕作机具 6
2.5.1旋耕刀的部分原理图 6
2.5.2旋耕刀的部分原理说明 6
3油茶垦复机中间传动的设计 7
3.1传动机构的设计 7
3.1.1中间传动机构简图 7
3.1.2中间传动系统部分的原理简述 7
3.1.3旋耕锹的技术参数 7
3.2传动比的确定 8
3.3齿轮的设计 8
3.3.1 锥齿轮的基本几何尺寸 8
3.3.2 直齿圆柱齿轮的的设计 8
3.4 传动轴的设计 11
3.4.2 初步计算轴上各段长度 11
3.4.3 轴的结构设计： 11
3.4.4.绘制轴的弯扭矩图，对危险截面进行校核 12
3.5 轴承的校核 14
3.5.1 计算轴承的当量动载荷P： 14
3.5.2 校核计算 14
3.5.3 轴上键连接的选择及校核 15
3.5.4轴上螺母的选择 15
3.6悬挂机构的设计 16
3.7 耕作机具的设计 18
４总结 19
参 考 文 献 20
致谢 21
