移动可伸缩带式输送机设计

摘  要

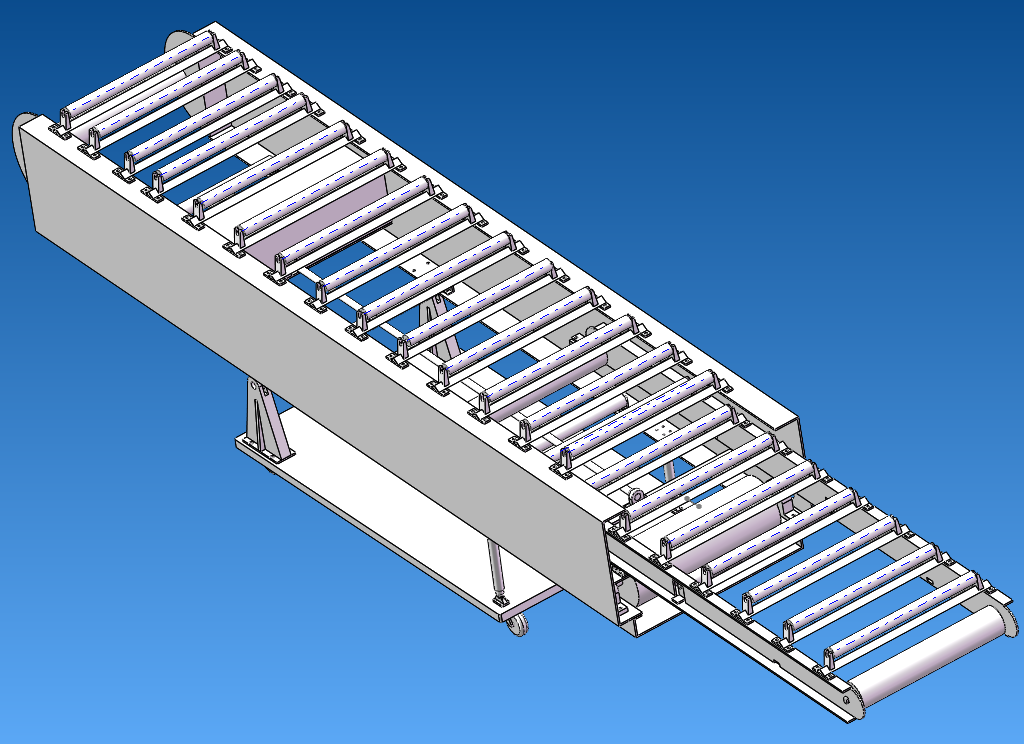

本文主要参考了一些普通带式输送机的设计方法，并研究了一些常见的轻型输送机所具备的特点，设计一个集三种功能：伸缩、移动、变幅为一体的创新型多功能带式输送机的设计方案，该方案着重于伸缩机构部分的分析以及讨论。

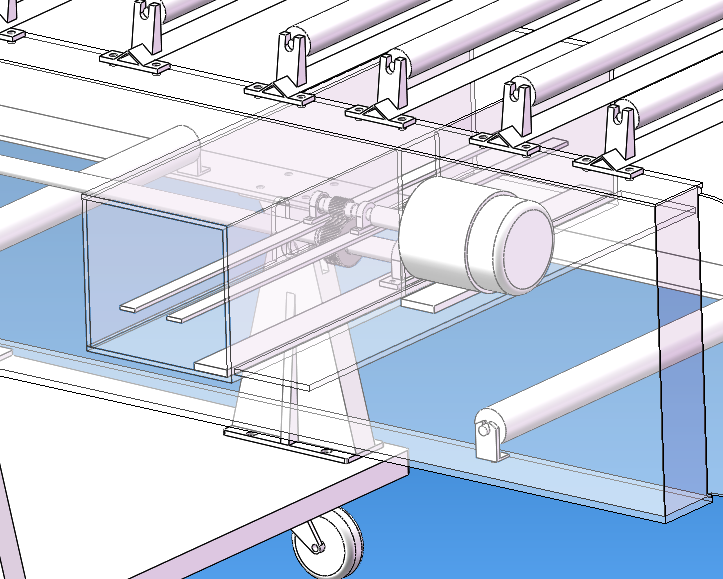

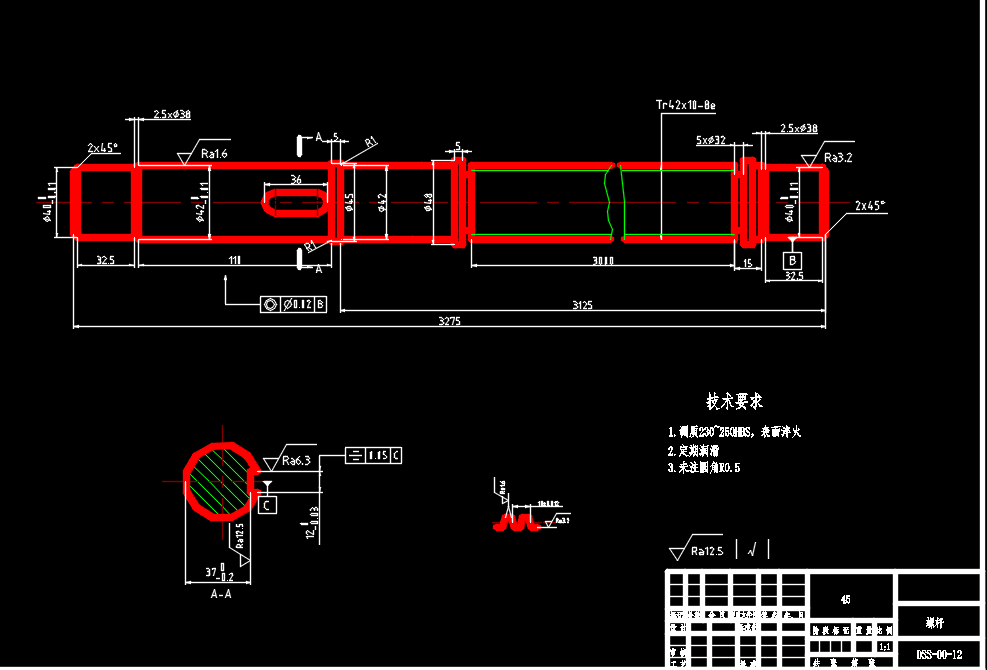

本文中对海内外运输机的近年发展状况、今后发展趋向、以及设计目的、设计方向和意义进行了概述，核心内容对伸缩输送机普遍应用的伸缩形式和传动形式进行了分析。本文的设计方案是以QD80带式运输机的设计方案为基础，并合理的在QD80输送机中选择一部分可用零部件，其中最核心的伸缩方案为自主设计，设计中的伸缩机构是采用螺母螺杆之间的传动以达成输送机可伸缩的设计要求，并通过相关计算得出了伸缩机构的相应数据，针对带式输送机在多种环境下的输送状态都进行了相应的模型简化，以及进行相应情况的受力分析，通过计算得出的结果应该确保在某些极限运输状态下的整体机构的可靠性与安全性。其中的传动机构部分是由电机带动减速齿轮，经减速后传动到螺母螺杆机构来组成的。

文中对伸缩机构详细设计的同时，在可移动、可变幅功能上也进行了设计，以及相应数据的计算，其中所涉及的部分零部件可由采购以及厂家定制等方法获得，同时也对带式送输机的多功能、多用途创新展开了设想。

关键词 带式输送机；伸缩；移动；变幅

Design of Telescopic Mobile Belt Conveyor

Abstract

This article refers to the general design of the belt conveyor, and analysis of some of the common characteristics of light conveyor,the design of an innovative multi - functional belt conveyor with three functions: telescopic, mobile and variable amplitude is designed. The scheme focuses on the analysis and discussion of the telescopic mechanism.

In this paper, the development situation, future development trend, design purpose, design direction and significance of the domestic and foreign transport aircraft are summarized. The core content analyzes the telescopic form and the transmission form of the telescopic conveyor. The design of this paper is based on the design of the QD80 Belt Conveyor, and it is reasonable to select a part of the available parts in the QD80 Conveyor. The most important telescopic scheme is to design the telescopic mechanism. The telescopic mechanism is the screw between the application screw In order to achieve the scalable design requirements of the conveyor, through the relevant calculation of the corresponding data of the telescopic mechanism for the belt conveyor in a variety of environments are carried out under the corresponding model of the simplified model, and the corresponding circumstances of the force Analysis, through the calculation of the results should ensure that in some extreme transport state of the overall body of the reliability and security. One part of the transmission mechanism is driven by the motor reduction gear, after deceleration and transmission to the nut screw mechanism to form.

In this paper, the design of the telescopic mechanism is designed in the same way as the movable and variable amplitude function, and the calculation of the corresponding data. Some of the parts involved can be obtained by purchasing and factory customization. The multi-purpose, multi-purpose innovation of the transport machine was envisaged.

Keywords  Belt-conveyor,telescopic,mobile,change-angle
