摘  要

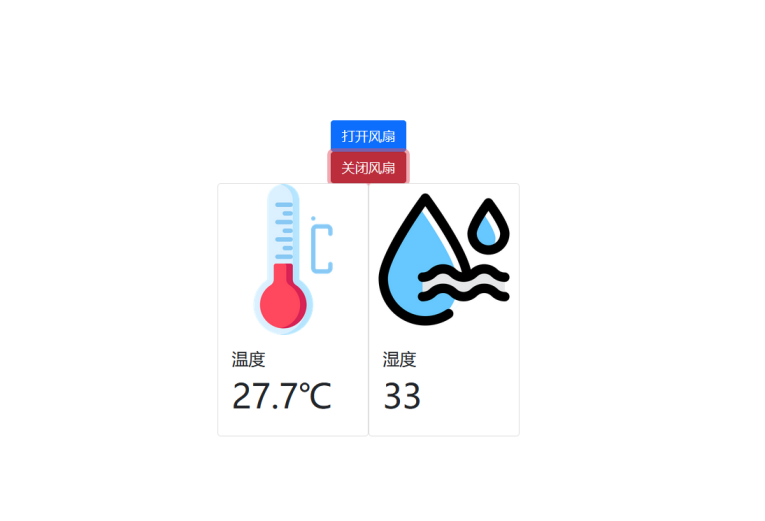

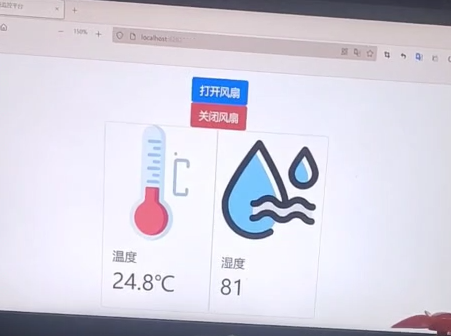

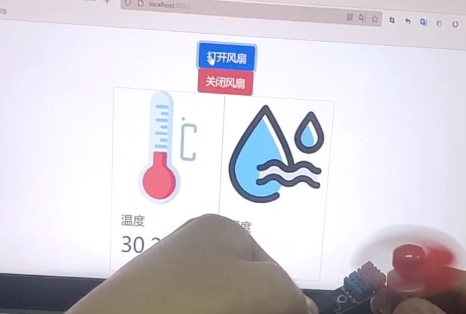

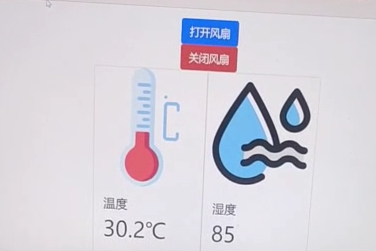

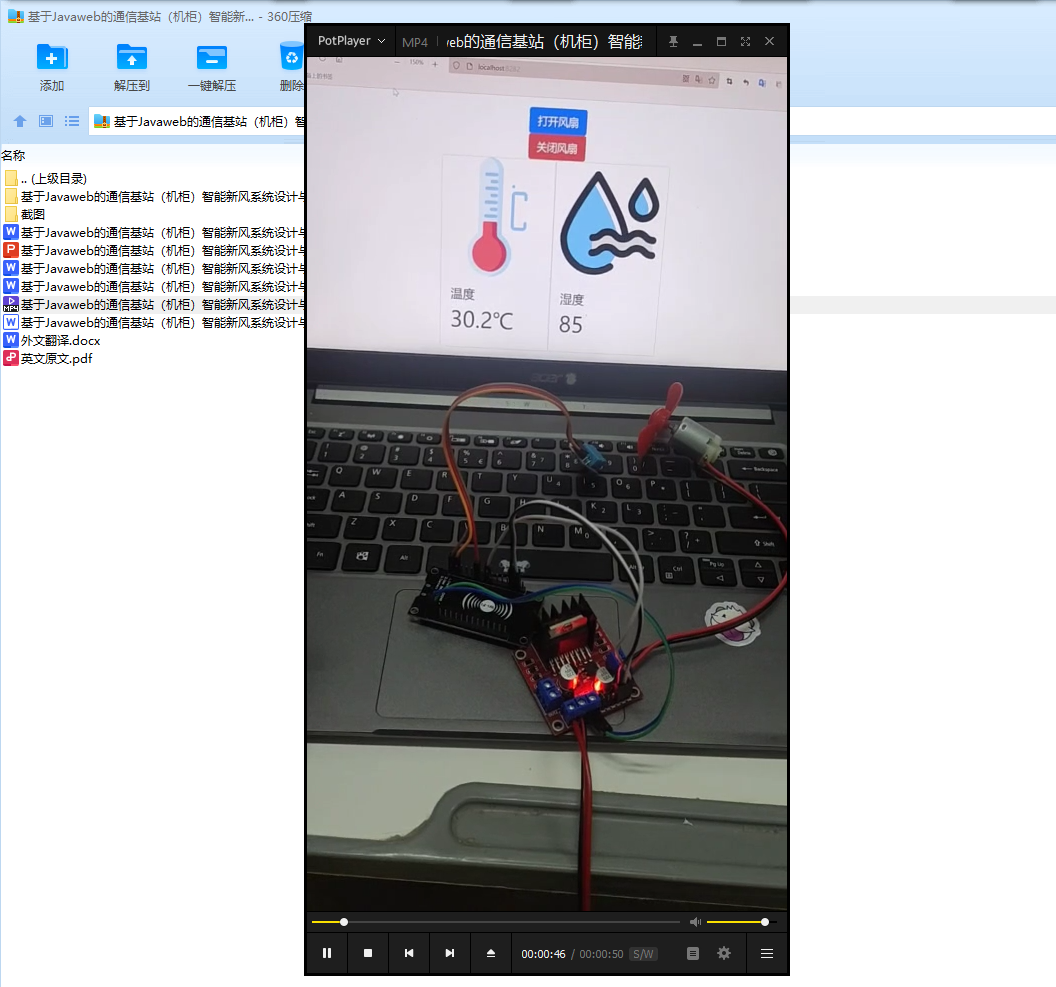

文中设计和实现了基于Javaweb、物联网技术、云平台网络等核心技术的基站智能新风系统监控平台。设计的主体是将温湿度传感器采集的基站环境的温湿度数据通过ESP8266模块上传至云服务器，在Web网页端上获取云服务器数据进行展示。以及通过在Web网页端远程控制电机来实现对通信机柜的物理降温，来使得基站的工作温湿度维持在一个合适的范围。从而整个系统平台都能够做到对通信机柜的环境湿度进行监测。

本文开始先就采用了Javaweb技术的通信基站智能新风系统监控平台的国内外研究现状，接着又对整个系统的总体设计方式、组网技术、器件选型，及系统硬件设计方案等做了介绍。最后结合系统硬件的总体设计，比较详细地介绍了系统各个模块的基本设计思想和工作流程。以及进行了相关稳定性测试。

关键词：DHT11温湿度模块，ONENET云平台，物联网技术

Design and implementation of intelligent fresh air system monitoring platform for communication base station (cabinet) based on Javaweb

ABSTRACT

This paper designs and implements a base station intelligent fresh air system monitoring platform based on Java Web, Internet of things technology, cloud platform network and other core technologies. The main body of the design is to upload the temperature and humidity data of the base station environment collected by the temperature and humidity sensor to the cloud server through the esp8266 module, and obtain the cloud server data on the web page for display. And the physical cooling of the communication cabinet is realized by remotely controlling the motor on the web page to maintain the working temperature and humidity of the base station in an appropriate range. Thus, the whole system platform can monitor the environmental humidity of the communication cabinet.

At the beginning of this paper, the research status of the intelligent fresh air system monitoring platform of communication base station using JavaWeb technology at home and abroad is introduced, and then the overall design mode, networking technology, device selection and system hardware design scheme of the whole system are introduced. Finally, combined with the overall design of the system hardware, the basic design idea and work flow of each module of the system are introduced in detail. And relevant stability tests were carried out.

Key words: DHT11 temperature and humidity module, ONENET cloud platform, Internet of Things technology
