摘要
本医院管理系统基于互联网的医院付费,挂号,取药系统主要用于医院挂号,收费,取药使用;它主要包括后台主机,挂号机,医生计算机,药方计算机;其工作原理是:就医者在挂号机上扫描身份证并选择挂号的科室,挂号机弹出二维码A,就医者用手机扫描二维码A,输入挂号金额,完成付费,后台主机指令挂号机打印挂号单生成条形码A,就医者就医时,医生扫描就医者挂号单上的条形码A,诊断并开出药方后,医生计算机打印出药品付费金额等信息并生成条形码B,就医者在挂号机上扫描条形码B,挂号机弹出二维码B,就医者用手机扫描二维码B,完成付费,挂号机打印二维码C,就医者来到药房取药处,用二维码C扫描扫描器,取走药品即可.
关键词：医院管理；挂号；预约；缴费；住院；取药
summary
The hospital management system is an Internet-based hospital payment, register, The drug collection system is mainly used for hospital registration, collect fees, Take the medicine for use; It mainly includes the background hosts, Registration machine, Doctor Computer, Scripts computer; Its working principle is: the doctor to scan the ID card on the registration machine and choose the registration department, The registration machine popped up the QR code A, Doctors scan the QR code A with their mobile phone, Enter the registration amount, Completed payment, Background host command registration machine print registration form to generate bar code A, During the time of medical treatment, The doctor scans the bar code A on the medical registration list, After the diagnosis and the prescription, The doctor's computer prints out the information about the amount of drug payment and generates the barcode B, Doctors scan the bar code B on the registration machine, Registration machine to pop up the QR code B, Doctors scan the QR code B with their mobile phone, Completed payment, Registration machine to print the QR code C, The doctor came to the pharmacy to get the medicine, Scan the scanner with a QR code C, Take away the medicine.
Key words: hospital management; registration; appointment; payment; hospitalization; take medicine
目录
1、概述 1
2、背景分析 1

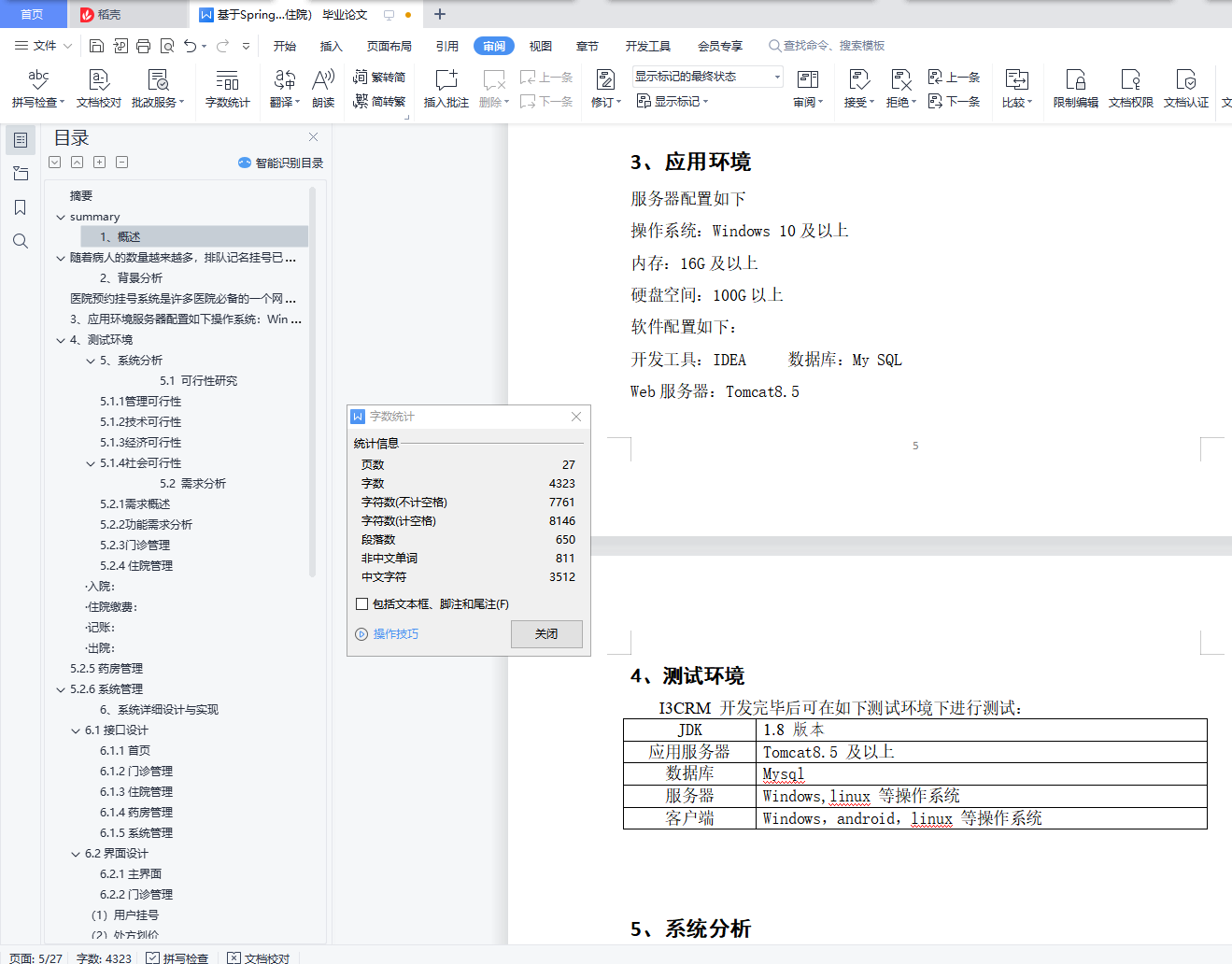

3、应用环境 1
4、测试环境 2
5、系统分析 2
5.1 可行性研究 2
5.1.1管理可行性 2
5.1.2技术可行性 2
5.1.3经济可行性 2
5.1.4社会可行性 2
5.2 需求分析 3
5.2.1需求概述 3
5.2.2功能需求分析 3
5.2.3门诊管理 4
5.2.4住院管理 6
5.2.6系统管理 8
6、系统详细设计与实现 9
6.1接口设计 9
6.1.1首页 9
6.1.2门诊管理 9
6.1.3住院管理 9
6.1.4药房管理 10
6.1.5系统管理 10
6.2界面设计 10
6.2.1主界面 10
6.2.2门诊管理 11
6.2.3住院管理 14
6.2.4药房管理 15
6.2.5系统管理 16
6.3数据结构设计 17
6.3.1门诊管理 17
6.3.2住院管理 18
6.3.3系统管理 19
6.3.4药房管理 19
7、课程设计总结及心得体会 21
8、参考文献 21
