摘要
本住宅楼电气设计为毕业设计，其目的是通过设计实践，综合运用所学知识，理论联系实际，锻炼独立分析和解决建筑电气设计问题的能力，为未来的工作奠定坚实的基础
本设计题目为：信达尚城7号楼电气系统设计。本设计说明书主要阐述了居民住宅楼各系统电气设计的设计依据、原则和方法及设计选择的结论。本论文共包括七章内容，前五章主要包括强电部分设计；第五、六章主要包括弱电部分。
强电部分主要内容包括：低压配电系统、照明插座系统及防雷接地系统的设计。其中主要有照明灯具和插座系统平面图布置，相关设备的选型，根据房间的不同照度要求进行了照度计算，并根据计算结果结果选择出合适的灯具。另外还对供配电系统和防雷接地系统进行了设计。
弱电部分主要内容包括：有线电视、电话以及网络系统等设计。

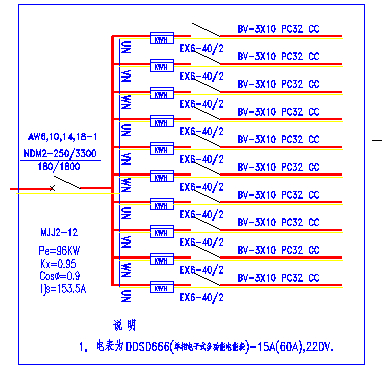

本次设计完成图纸共20幅(其中手工图1张），其中设计说明、图例1张，强电平面图及系统图10张，弱电平面图及系统图9张。
关键词：低压配电；照明；插座；有线电视；电话
Abstract
This electrical design of the office building is a graduation design，The purpose of this design is to give us a chance of synthetical usage of the knowledge we have learned. Besides, it can train our ability to analyze and solve practical problems in Construct electricity in dependently so that the theory is connected with practice and a solid base is made in favor of future work.
The topic name of this design is the building electrical design of Xin Da Shang Cheng 7# Electrical Design.This thesis mainly explains the electrical design basis ,principle, methods and the conclusion of the design choice in each system in the design of Residential buildings. The thesis includes six Chapters. previous four Chapters are mostly about the design of the forceful electric power Part; Chapter 5 and 6 are mostly about the design of the light current .
The part of the forceful electric power mainly including: the distribution system of the low voltage, lighting system and rounding for lightening systematical compose ，among others include load calculation, illumination calculation . The major ones are lighting and socket system plan layout, equipment selection, according to the room illumination requirements of the different illumination calculation based on the results of the calculation results choose the appropriate lighting. Also on the supply and lightning protection grounding system design.
The part of the light current mainly including: CATV, elephone and Internet systems and so on.
The design adds up to 20 electric charts.（Including 1Hand-drawn charts），There are one piece of legend, 10 pieces of the strong electric plane drawings and system drawings, and 9 pieces of the weak electric plane drawings and system drawings.
Key Words: Low voltage distribution; Illumination; Plug; CATV; Phone
