摘要

无刷直流电机(BLDCM)具有调速性能优异、运行性能可靠和维护方便等优点，相较于有刷直流电机，其采用电子换向取代机械换向，有效地提高了电动机的运行效率，也使得其成品体积更加的轻巧。但是无刷直流电机也存在转矩脉动、控制器复杂、成本较高等缺陷，这些缺陷的存在也一定程度上影响了无刷直流电机作为高效、先进电机在应用上的普及，因此研究如何改善以及解决无刷直流电机存在的问题便具有更加明显的现实意义。

MATLAB是一款用于数据分析与计算、算法开发以及动态系统建立与仿真的数学软件。最初是由美国MathWorks公司出品的商用数学软件，其由Matlab和Simulink两个重要组成部分构成，现在更是应用于工程计算、控制设计、信号处理与通讯、图像处理、信号检测、金融建模设计与分析等领域。

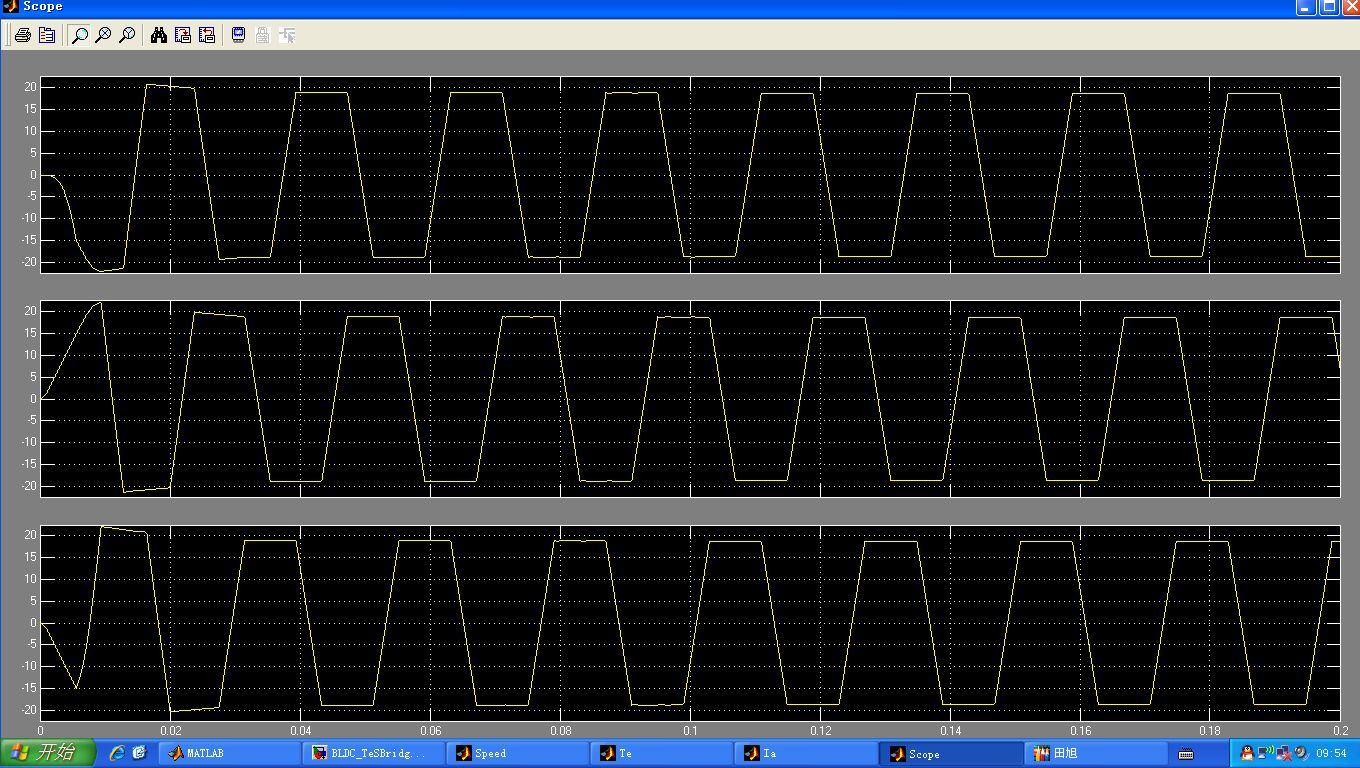

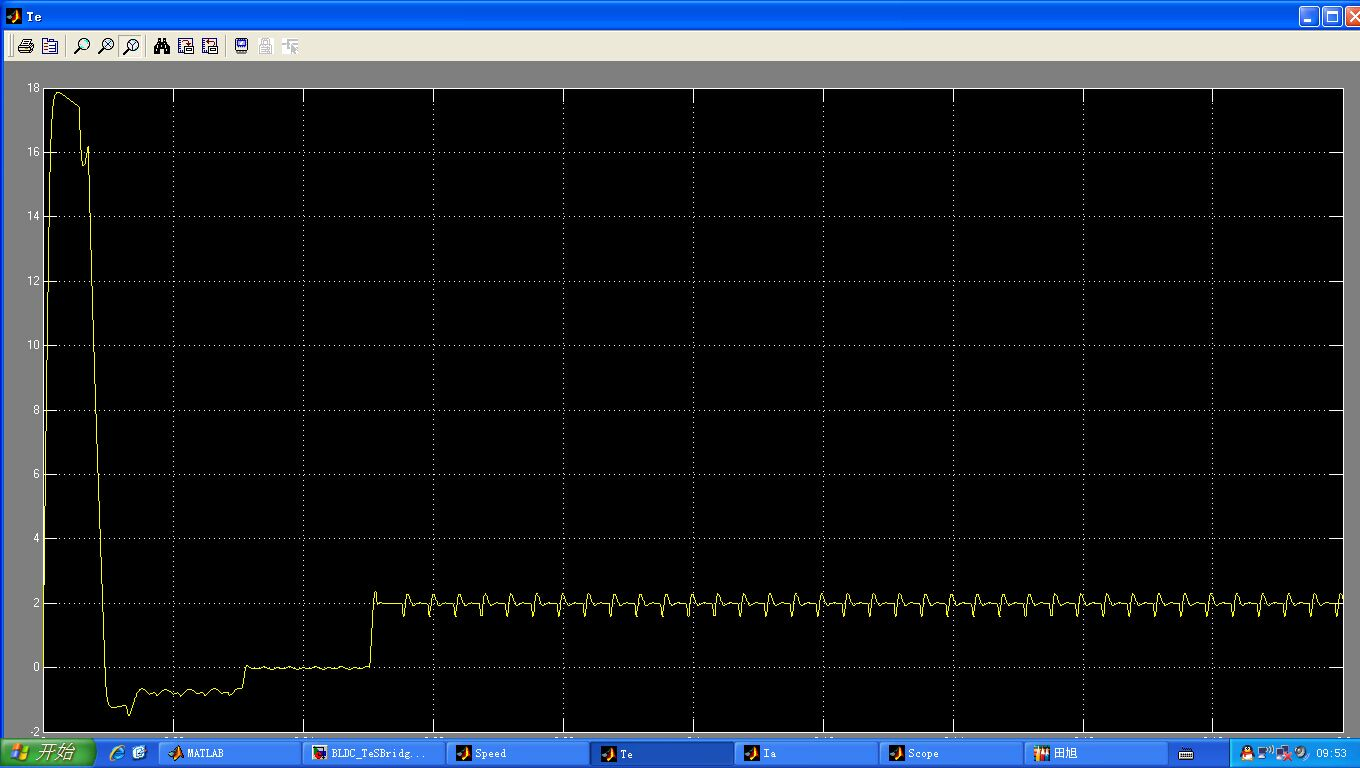

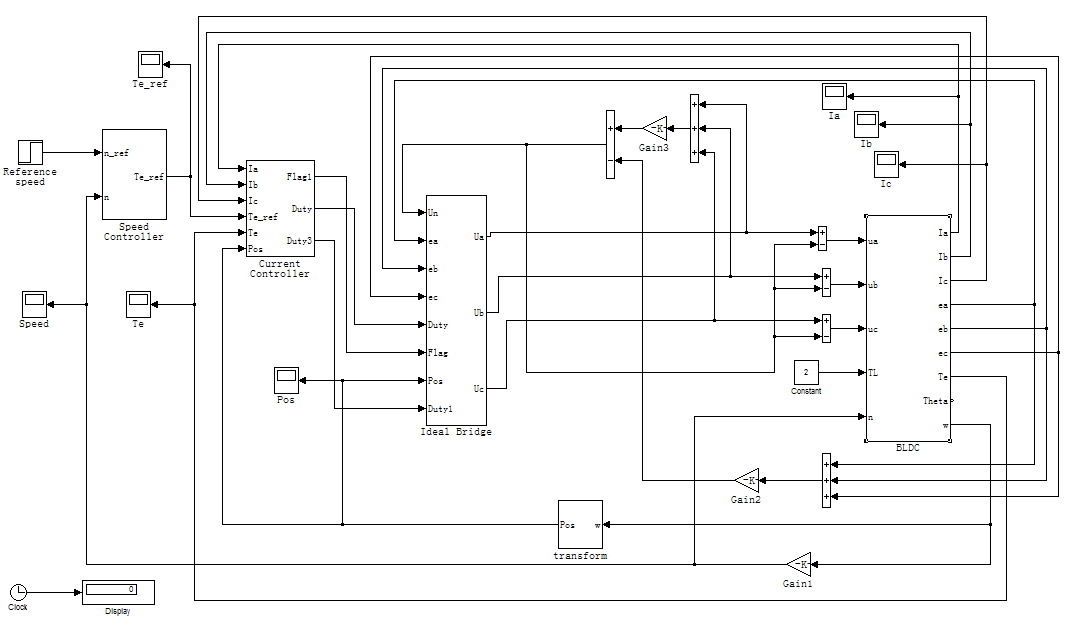

本文通过对无刷直流电机结构以及工作原理的研究与分析，找出导致其具有较大转矩脉动的原因，并先从理论上得到如何抑制转矩脉动的方法，再通过Matlab建立起无刷直流电机的仿真模型，对其仿真结果进行分析与改善，从而有效地抑制无刷直流电机的转矩脉动。

关键词：无刷直流电机，转矩脉动，仿真模型

Brushless DC motor (BLDCM) has excellent speed performance, reliable performance and easy maintenance, etc., compared to a brush DC motor, which uses electronically commutated replace mechanical commutation, effectively improve the operating efficiency of the motor, but also so that the volume of the finished product more compact. But there brushless DC motor torque ripple controller complexity, high cost and other defects, the presence of these defects also affected to some extent, a brushless DC motor as efficient and advanced motor universal in application, how to improve and therefore research solve the problems of the brushless DC motor will have more obvious practical significance.

MATLAB is a tool for data analysis and computation, algorithm development, and simulation of dynamic systems to establish and mathematical software. MathWorks was originally developed by the US company produced commercial mathematical software, which consists of Matlab and Simulink are two important parts, and now it is used in engineering calculations, control design, signal processing and communications, image processing, signal detection, financial modeling design and analysis and other fields.

Based on the brushless DC motor structure and working principle of research and analysis to identify the cause of which has a large torque ripple, and theoretically first get how to suppress torque ripples, established through Matlab brushless Simulation Model DC motor, its simulation results are analyzed and improved in order to effectively suppress the torque ripple of the brushless DC motor
